3.0 MPa Aluminum Fin Type Air Cooled Copper Tube Air Condition Heat Exchanger
Product Details:
| Place of Origin: | Shanghai, china(Mainland) |
| Brand Name: | shenglin |
| Model Number: | FP |
|
Detail Information |
|||
| High Light: | copper pipe heat exchanger,copper heat exchangers,copper tubing heat exchanger |
||
|---|---|---|---|
Product Description

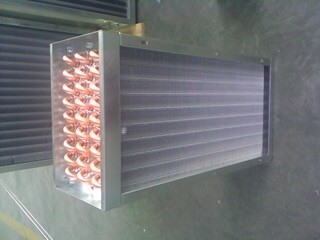

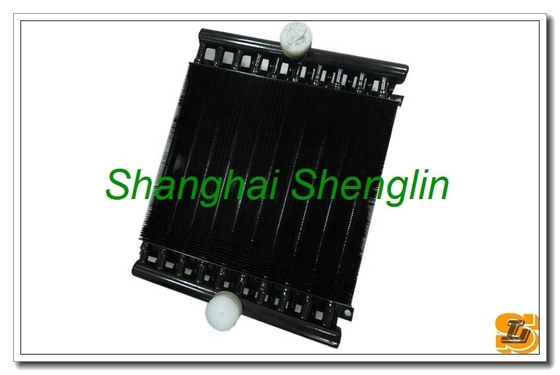

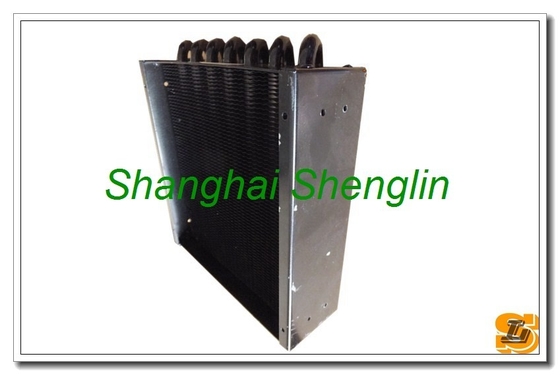

3.0 MPa Aluminum Fin Type Air Cooled Copper Tube Heat Exchanger For Air Conditioner
Description:
1.Heat exchanger.
2.Can be customerized
3.Work Pressure:0.2~3.1MPa
4.Fin space:1.2~3.5mm
5.Tube Diameter: 7, 7.94, 9.52, 12.75, 15.88.
Specifications:
|
Fin Type |
Copper Tube O.D. (mm) |
Row Space (mm) |
Hole Space (mm) |
Fin Thickness (mm) |
Fin Space(mm) |
|||||
|
Flat fin |
Sine wave with blade fin |
Smooth sine wave fin |
Window fin |
Sesamoid fin |
||||||
|
A |
7 |
12.7 |
21 |
0.105 |
/ |
/ |
1.3 |
1.3 |
/ |
|
|
B |
7 |
13.2 |
17.6 |
0.105 |
/ |
/ |
1.3 |
1.3 |
/ |
|
|
C |
7 |
12.7 |
20.4 |
0.105 |
/ |
/ |
1.3~1.8 |
1.3~1.8 |
/ |
|
|
D |
7.94 |
15.88 |
25.4 |
0.105 |
1.8~3.0 |
1.8~3.0 |
1.8~3.0 |
1.8~3.0 |
/ |
|
|
E |
7.94 |
19.05 |
22 |
0.105~0.13 |
1.4~3.0 |
1.4~3.0 |
1.4~3.0 |
1.4~3.0 |
/ |
|
|
E |
9.52 |
22 |
25.4 |
0.105~0.15 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
/ |
|
|
F |
9.52 |
22 |
25.4 |
0.18~0.4 |
3.5~6.35 |
/ |
/ |
/ |
/ |
|
|
G |
9.52 |
21.65 |
25 |
0.105~0.18 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
/ |
|
|
H |
9.52 |
21.65 |
25 |
0.15~0.24 |
3.2~6.35 |
3.2~6.35 |
3.2~6.35 |
/ |
/ |
|
|
I |
12.75 |
27.5 |
31.75 |
0.115~0.15 |
1.5~3.5 |
1.5~3.5 |
1.5~3.5 |
1.5~3.5 |
1.6~3.2 |
|
|
J |
15.88 |
33 |
38.1 |
0.115~0.15 |
1.5~4.0 |
1.5~4.0 |
1.5~4.0 |
/ |
/ |
|
|
K |
15.88 |
34.64 |
40 |
0.115~0.15 |
/ |
2.6~3.5 |
2.6~3.5 |
/ |
/ |
|
Fin type:
hydrophilic fin-window type Plain fin- flat type Sesamoid fin
|
Item |
Heat exchanger Type |
Operation medium |
Operation pressure (MPa) |
Application |
|
1 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin |
Cold/hot water |
1.6 |
Used for combined air handling unit, fan coil etc air conditioning devices |
|
2 |
Φ18/Φ20 Steel pipe winding with steel sheet |
Steam |
0.2 |
Used for combined air handling unit, fan coil etc air conditioning devices |
|
3 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin |
Brine |
1.6 |
Used for heat transfer in cold storage and all kinds of low temperature systems |
|
4 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin |
Ethylene glycol |
1.6 |
Used of energy recovery and low temperature system devices |
|
5 |
Φ16 Copper tube with aluminium fin |
Ice mud |
1.6 |
Used for dry operation condition, fresh air dehumidification etc systems |
|
6 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin |
R22 |
1.9 |
Used for industry and commerce air conditioning system |
|
7 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin |
R407C |
1.9 |
Used for industry and commerce air conditioning system |
|
8 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin |
R134a |
3.1 |
Used for vehicle and vessel etc transportation devices |
